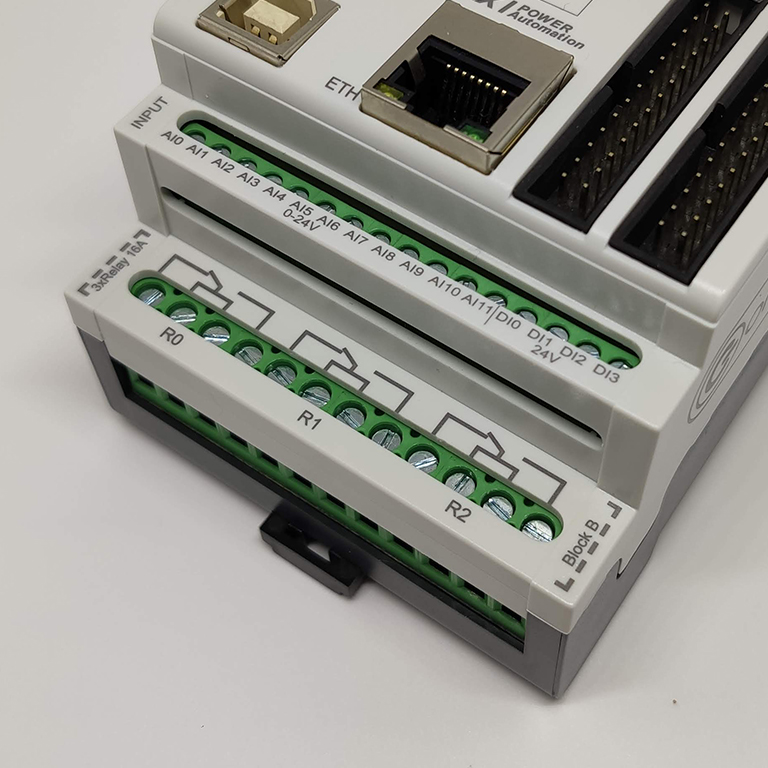

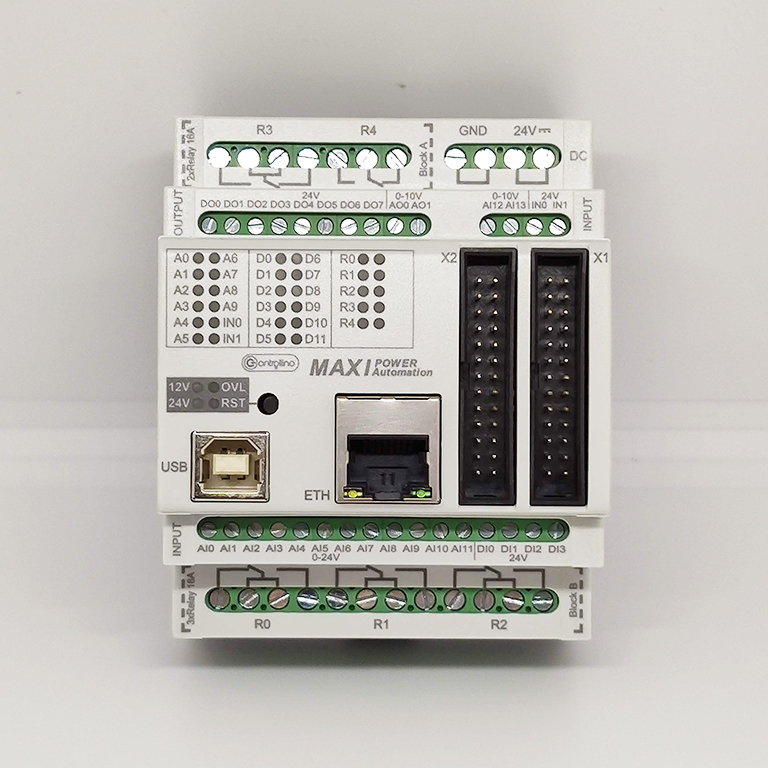

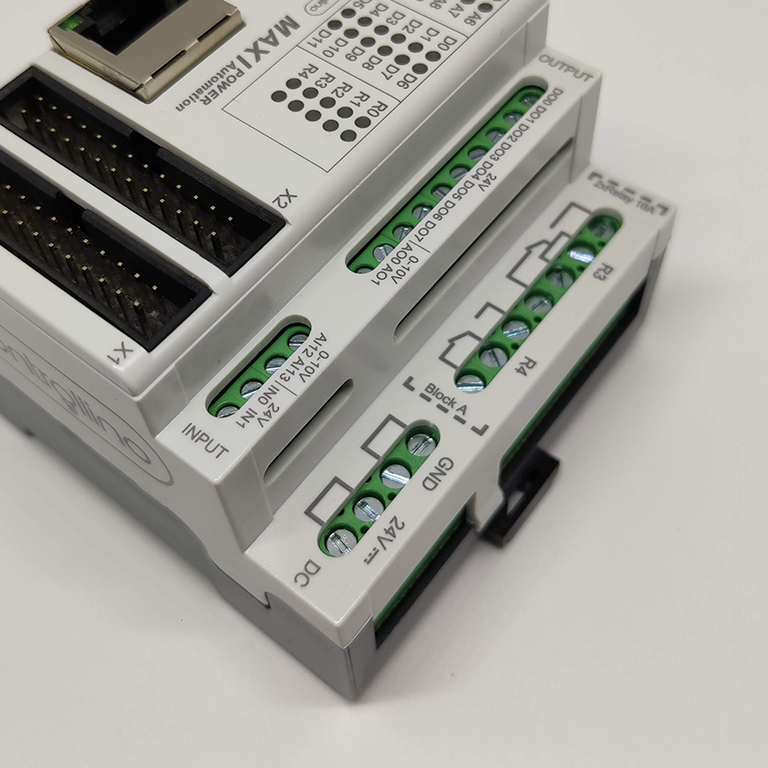

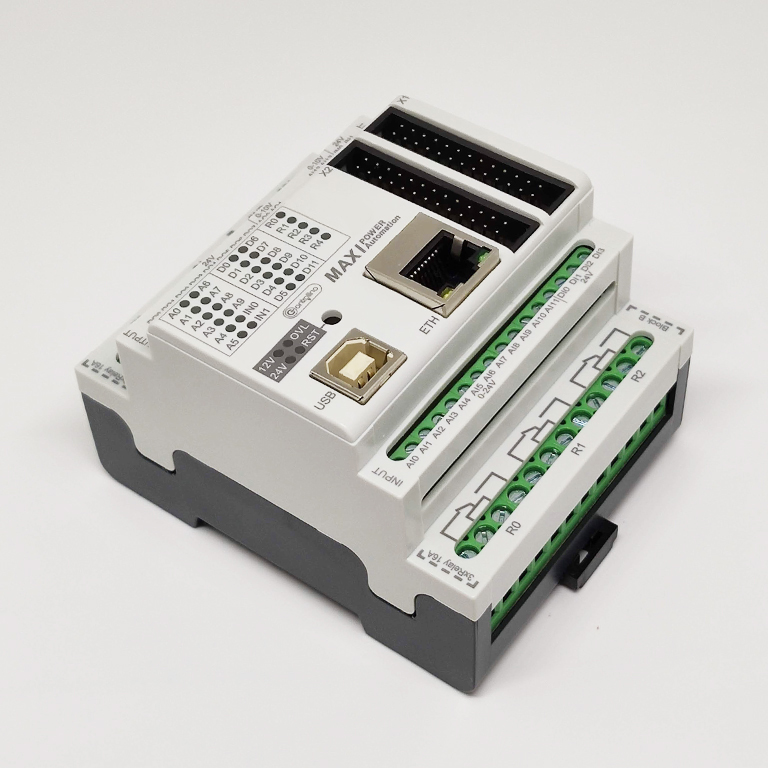

CONTROLLINO MAXI Power Automation

105 in stock (can be backordered)

The MAXI Automation is the version of Controllino MAXI specifically tailored for the needs of automation specialists that need 0-10V I/Os and is now available as MAXI Power Automation variant with 5x 16 Amps relays! It is the perfect compromise between compact size and big input and output quantity. The core competence is its flexibility.

Product__0005_MAXI-Power-Automation

229.00 excl VAT

105 in stock (can be backordered)

SKU 100.104.00 Category: Tags: , ,
In Stock

Description

The MAXI Automation is the version of Controllino MAXI specifically tailored for the needs of automation specialists that need 0-10V I/Os and is now available as MAXI Power Automation variant with 5x 16 Amps relays! It is the perfect compromise between compact size and big input and output quantity. The core competence is its flexibility. Note that MAXI Power Automation operates only with a supply voltage of 24V DC.

Features MAXI Power Automation
5V Pin Headers Yes
Analog/Digital Inputs 12
Only Digital Inputs 6
Analog 0-10V Inputs 2
Interrupt Inputs 2
Digital 2A Outputs 8 (all PWM)
Analog 0-10V Outputs 2
Relay Outputs 5 (16A)
Serial TTL Interface 2
I²C Interface 1
SPI Interface 1
RS485 Interface no
RTC 1
Ethernet Interface 1
Stepper Driver Output no

Additional information

Weight 0.35 kg
